The Importance of Understanding Tolerances in Metal Fabrication

Metal fabrication demands precision. Every cut, bend, and weld must meet exact standards to ensure parts fit and function correctly. One key factor that drives this precision is tolerance—the allowable variation in a part’s dimensions. For metal fabricators, understanding and controlling tolerances is essential to delivering quality products that meet client expectations and engineering requirements.

Hatfield Metal Fabrication stands out in the industry by holding some of the strictest tolerances. This commitment helps them serve demanding engineering firms that require flawless components for complex projects. This post explores why tolerances matter, how they affect metal fabrication, and practical tips for fabricators aiming to improve their tolerance control.

Precision metal part showing tight dimensional tolerances

Close-up view of a precision metal part showing tight dimensional tolerances

What Are Tolerances and Why Do They Matter?

Tolerance defines the acceptable range of variation from a specified dimension. For example, if a metal bracket is designed to be 100 mm long with a tolerance of ±0.1 mm, the actual length can be anywhere between 99.9 mm and 100.1 mm. This range ensures parts fit together properly without excessive force or looseness.

Tolerances matter because:

• Fit and Function: Parts with loose tolerances may not fit correctly, causing assembly issues or mechanical failure.

• Interchangeability: Consistent tolerances allow parts to be swapped without custom adjustments.

• Cost Control: Tighter tolerances usually increase production costs, so balancing precision with cost is critical.

• Quality Assurance: Meeting tolerance standards reflects a fabricator’s capability and reliability.




Engineering firms often specify tight tolerances for critical components, especially in aerospace, automotive, and medical device industries. Fabricators like Hatfield Metal Fabrication meet these demands by maintaining strict control over every step of the process.

How Tolerances Affect Metal Fabrication Processes

Each fabrication method has its own tolerance capabilities. Understanding these helps fabricators choose the right process and set realistic expectations.

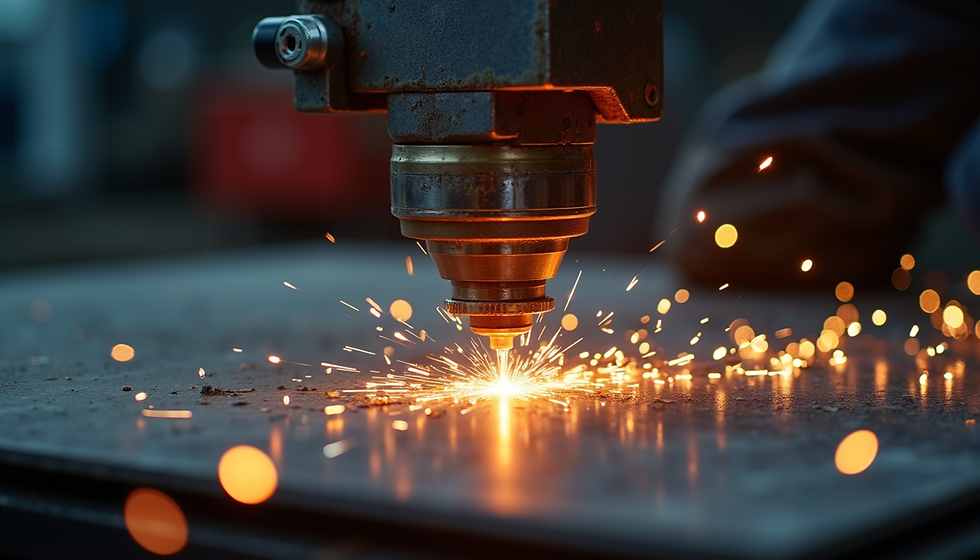

• Cutting: Laser cutting and waterjet cutting offer tight tolerances, often within ±0.1 mm. Plasma cutting usually has wider tolerances.

• Bending: Tolerances depend on material thickness and bend radius. Springback can cause deviations, so precise control is needed.

• Welding: Heat can cause distortion, affecting dimensions. Skilled welders and proper fixturing reduce tolerance issues.

• Machining: CNC machining achieves very tight tolerances, sometimes within microns, ideal for finishing operations.




Hatfield Metal Fabrication’s ability to hold strict tolerances comes from combining advanced equipment with experienced operators who understand the nuances of each process.

Common Challenges in Maintaining Tight Tolerances

Fabricators face several challenges when trying to hold tight tolerances:

• Material Variability: Differences in material properties can affect how metal behaves during fabrication.

• Machine Calibration: Tools must be regularly calibrated to maintain accuracy.

• Environmental Factors: Temperature and humidity can cause metal expansion or contraction.

• Operator Skill: Experienced technicians are essential to monitor and adjust processes in real time.

• Inspection Limitations: Accurate measurement tools and techniques are necessary to verify tolerances.




Engineering firms rely on fabricators who can manage these challenges effectively to ensure parts meet specifications.

Practical Tips for Metal Fabricators to Improve Tolerance Control

Improving tolerance control requires a combination of technology, process management, and skilled personnel. Here are some practical steps:

• Invest in High-Precision Equipment

Use CNC machines, laser cutters, and other tools known for tight tolerance capabilities.

• Regularly Calibrate Tools

Schedule frequent calibration of measurement and fabrication equipment to maintain accuracy.

• Implement Quality Control Procedures

Use statistical process control (SPC) to monitor production and catch deviations early.

• Train Operators Thoroughly

Skilled operators can anticipate issues like springback or distortion and adjust accordingly.

• Use Proper Fixturing and Clamping

Secure parts firmly during fabrication to prevent movement and distortion.

• Collaborate with Engineering Firms

Understand their tolerance requirements clearly and communicate any limitations upfront.

Hatfield Metal Fabrication’s success with strict tolerances comes from applying many of these practices consistently.

Why Engineering Firms Value Strict Tolerance Control

Engineering firms design products that often require exact fits and reliable performance. When they partner with fabricators who hold tight tolerances, they benefit from:

• Reduced Assembly Time

Parts fit together without rework or adjustments.

• Improved Product Reliability

Consistent dimensions reduce the risk of failure in the field.

• Cost Savings

Avoiding scrap and rework lowers overall project costs.

• Confidence in Supply Chain

Reliable fabricators help engineering firms meet project deadlines and quality standards.

Hatfield Metal Fabrication’s reputation for precision makes them a preferred partner for many engineering firms with demanding projects.
